Pushing Boundaries: Zend Framework 3 and the Future

by Enrico Zimuel, Senior Sofware Engineer
Zend Technologies Ltd

PHP Day, Verona (Italy), 15th May 2015

About me

Enrico Zimuel (@ezimuel), professional developer since 1996. Senior Software Engineer in the R&D department of Zend Technologies, since 2008. Research in computer science at the Informatics Institute of Amsterdam University. Open source contributor and co-author of Apigility and Zend Framework. Co-author of the Italian books PHP Best Practices and Javascript Best Practices. Co-founder of PUG Torino (Italy).

ZF3 in a nutshell

  • Emphasis on components
  • Focus on HTTP, via PSR-7 and middleware
  • Optimize for PHP 7, but support PHP 5.5+
  • Stable release October 2015!


ZF1: the past

  • Components are developed within the framework repository, and
  • are installable only with the entire framework.

ZF2: today

  • Components are developed within the framework repository, and
  • can be installed individually (Composer, git submodules).

The future

ZF 2.5+

  • Components will be developed in their own repositories.
  • Components will be installable individually.
  • The ZF repository will depend on components!

ZF's composer.json becomes...

  "require": {
    "zendframework/zend-authentication": "^2.5",
    "zendframework/zend-cache": "^2.5",
    "zendframework/zend-captcha": "^2.5",
    "etc": "*"


Ease maintenance

  • Allow more teams with commit rights
  • Allow deterministic fate of repositories

Selective evolution

  • Bump major versions as needed
  • Framework repo can selectively upgrade components

Use-case specific skeletons

  • Delivering only web services?
  • Need performance?
  • Need everything?

There will be a skeleton for that!

HTTP, PSR-7, and Middleware

HTTP is the foundation of the web

  • A client sends a request
  • A server returns a response

HTTP messages


GET /path HTTP/1.1
Host: example.com
Accept: application/json


HTTP/1.1 200 OK
Content-Type: application/json


Frameworks model messages

But every framework does it differently.

$method = $request->getMethod();
$method = $request->getRequestMethod();
$method = $request->method;


Shared HTTP Message Interfaces


$method     = $request->getMethod();
$accept     = $request->getHeader('Accept');
$path       = $request->getUri()->getPath();
$controller = $request->getAttribute('controller');


$response->getBody()->write('Hello world!');
$response = $response
  ->withStatus(200, 'OK')
  ->withHeader('Content-Type', 'text/plain');

PSR-7 and the ZF MVC

Still under discussion, but…

  • we may consume PSR-7 directly
  • or create a bridge implementation


Between the request and response

function (Request $request, Response $response)
    // do some work
    return $response; // same, or a new instance.

Types of middleware

Stacks or pipelines

$pipeline->pipe($middleware1);          // always evaluate
$pipeline->pipe('/path', $middleware2); // only if path matches
$pipeline->pipe('/different/path', $middleware3);
$response = $pipeline->run();

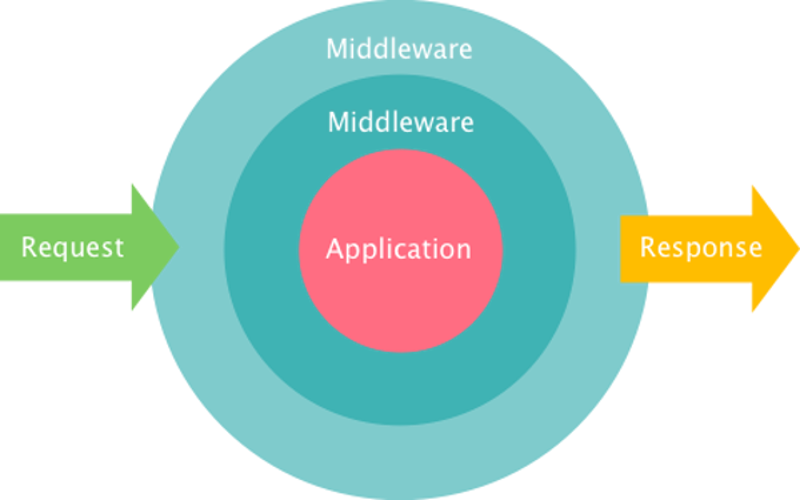

Onion style

class Outer
    public $inner;
    public function __invoke($request, $response)
        // do some work

        $response = ($this->inner)($request, $response);

        // do some work
        return $response;

$response = $outer($request, $response);

Lambda style

function (Request $request)
    // do some work
    return $response;

$response = $middleware($request);

Consuming middleware

ZF will allow dispatching the following middleware:

 * @return Response
public function (Request $request, Response $response);

… and ZF controllers will be middleware.

Middleware wrapper for ZF

$middleware = new MvcMiddlewareWrapper(
    require 'config/application/config.php'

class MvcMiddlewareWrapper
    public function __invoke($request, $response)
        $app = Application::init($this->config);
        return $app->dispatch($request, $response);

Middleware as an alternative runtime


  • Performance
  • Developer experience
  • Reusability across frameworks


$app = new Middleware();
$app->pipe('/', $homepage);              // Static!
$app->pipe('/customer', $zf2Middleware); // ZF2!
$app->pipe('/products', $zf1Middleware); // ZF1!
$app->pipe('/api', $apigility);          // Apigility!
$app->pipe('/user', $userMiddleware);    // 3rd party!


PSR-7 and Middleware provide…

  • Paths for performance optimization
  • Simpler web-facing interfaces
  • Greater interoperability and re-use potential

PHP 7 and PHP 5.5

Upgrade to PHP 5.5

  • We get to use traits!
  • We get to use short array syntax!
  • We get to use the callable type hint!
  • We get to use finally!
  • We can use the ::class magic constant!
  • We get to use generators!
  • We get faster, more secure PHP!

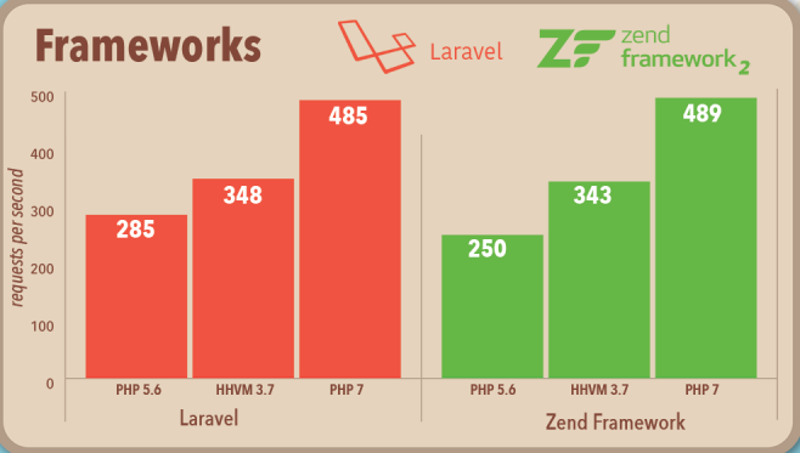

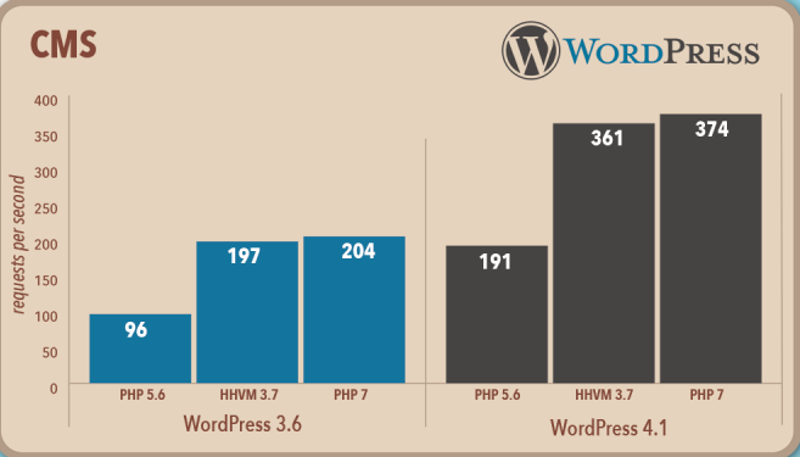

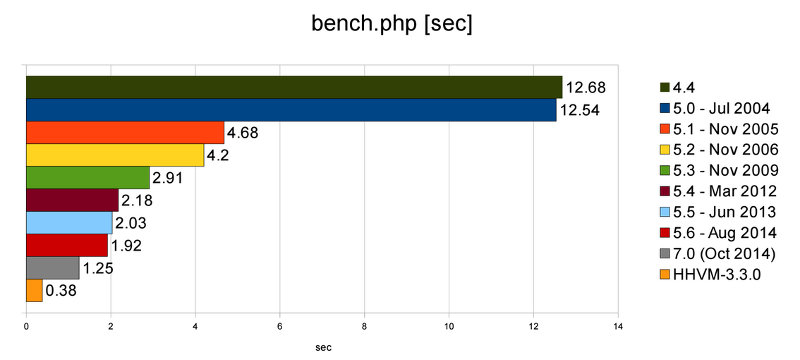

Impressive performance improvement!

New data structure management in the PHP engine

New features like return/scalar type declarations

PHP 7: benchmark

$a = array();
for ($i = 0; $i < 1000000; $i++) {
	$a[$i] = array("hello");
echo memory_get_usage(true);
PHP 5.6 PHP 7
Memory Usage 428 MB 33 MB
Execution time 0.49 sec 0.06 sec




ZF3: optimized for PHP 7

  • Running tests in strict and/or coercive mode.
    • Allowing us to fix bugs for PHP 5, and also forward-proof code for PHP 7.
  • Potentially automate release builds that add scalar typehints from docblock annotations.
  • Profiling in PHP 7 to see where we can optimize architecture for performance.

Updating PHP…

  • Provides better security
  • Improves performance
  • Allows us to improve the framework



HTTP, PSR-7, and Middleware!

PHP 7 and PHP 5.5!

Some references

Thank you!

Rate this talk at: joind.in/14532
