The Sodium crypto library of PHP 7.2

by Enrico Zimuel
Senior Software Engineer
Rogue Wave Software, Inc.

phpDay 2018, Verona (Italy), May 12

About me

Developer since 1996 Senior Software Engineer at Rogue Wave Software Inc. Core team of Apigility, Expressive and Zend Framework TEDx and international speaker Research Programmer at Amsterdam University Co-founder of PUG Torino (Italy)

Overview

• NaCl/Sodium libraries
• Elliptic Curve Cryptography
• Sodium in PHP 7.2:
  1. Encrypt with a shared-key
  2. Authenticate with a shared-key
  3. Sending secret messages
  4. Digital signature
  5. AEAD AES-GCM
  6. Store passwords safely
  7. Derive a key from a user's password

Cryptography

Cryptography is hard. Hard to design, hard to implement, hard to use, and hard to get right.

NaCl

• NaCl: Networking and Cryptography library
• High-speed software library for network communication, encryption, decryption, signatures, etc
• by Prof. Daniel J. Bernstein, and others
• Highly-secure primitives and constructions, implemented with extreme care to avoid side-channel attacks

Side-channel attack

Attack based on information gained from the implementation of a computer system, rather than weaknesses in the implemented algorithm itself

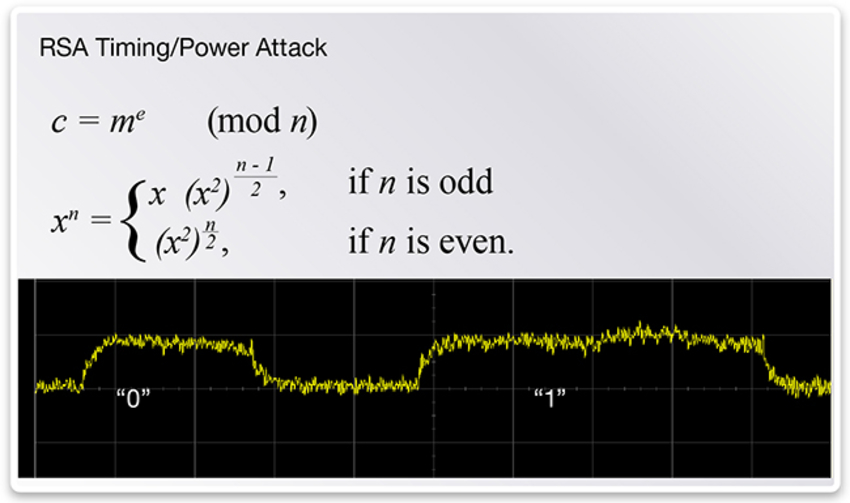

Decode RSA key using power analysis

Source: Protecting Against Side-Channel Attacks with an Ultra-Low Power Processor

Timing attack

An attacker measures the CPU time to perform some procedures involving a secret (e.g. encryption key). If this time depends on the secret, the attacker may be able to deduce information about the secret.

Example in PHP

function compare(string $expected, string $actual): bool
{
    $lenExpected = strlen($expected);
    $lenActual   = strlen($actual);
    if ($lenExpected !== $lenActual) {
        return false;
    }
    for($i=0; $i < $lenActual; $i++) {
        if ($expected[$i] !== $actual[$i]) {
            return false;
        }
    }
    return true;
}

Prevent timing attack *

function compare(string $expected, string $actual): bool
{
    $lenExpected = strlen($expected);
    $lenActual   = strlen($actual);
    $len         = min($lenExpected, $lenActual);

    $result = 0;
    for ($i = 0; $i < $len; $i++) {
        $result |= ord($expected[$i]) ^ ord($actual[$i]);
    }
    $result |= $lenExpected ^ $lenActual;
    return ($result === 0);
}

* constant-time comparison

Best timing attack

In 2006 Adi Shamir, Eran Tromer, and Dag Arne Osvik used a timing attack to discover, in 65 milliseconds, the secret key used in widely deployed software for hard-disk encryption.

Source: Cache Attacks and Countermeasures: the Case of AES

Sodium crypto library

Sodium

• Sodium (libsodium) is a fork of NaCl
• A portable, cross-compilable, installable, packageable, API-compatible version of NaCl
• Same implementations of crypto primitives as NaCl
• Shared library and a standard set of headers (portable implementation)
• Official web site: libsodium.org

Features

• Authenticated public-key and authenticated shared-key encryption
• Public-key and shared-key signatures
• Hashing
• Keyed hashes for short messages
• Secure pseudo-random numbers generation

Algorithms in Sodium

• Curve25519 Diffie–Hellman key-exchange function
• Salsa20, ChaCha20 stream ciphers
• Poly1305 message-authentication code
• Ed25519 public-key signature system
• Argon2, Scrypt password hashing
• AES-GCM authenticated encryption algorithm

Elliptic curves

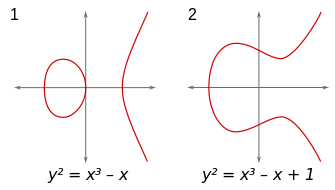

Elliptic curves

$ y^2 = x^3 + ax + b $

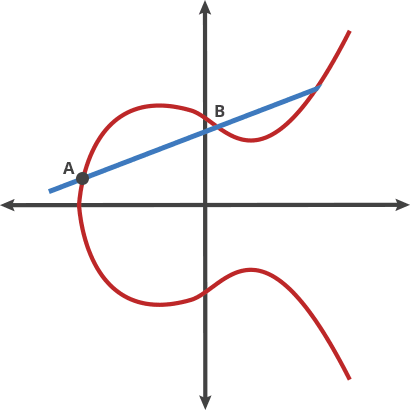

Add 2 points

$ A + B = C, A + C = D, A + D = E$

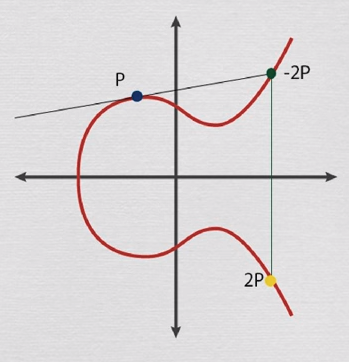

Scalar multiplication

$ P + P = 2P $

Given $P$ and $Q$ find $k$ such that $Q=kP$ is hard

Sodium in PHP

• Available (as standard library) from PHP 7.2
• PECL extension (libsodium) for PHP 7.0/7.1
• 85 functions with prefix sodium_
  e.g. sodium_crypto_box_keypair()

Example 1:

encrypt with a shared-key

Symmetric encryption

$msg = 'This is a super secret message!';

// Generating an encryption key and a nonce
$key   = random_bytes(SODIUM_CRYPTO_SECRETBOX_KEYBYTES); // 256 bit
$nonce = random_bytes(SODIUM_CRYPTO_SECRETBOX_NONCEBYTES); // 24 bytes

// Encrypt
$ciphertext = sodium_crypto_secretbox($msg, $nonce, $key);
// Decrypt
$plaintext = sodium_crypto_secretbox_open($ciphertext, $nonce, $key);

echo $plaintext === $msg ? 'Success' : 'Error';

Example 2:

authenticate with a shared-key

Symmetric authentication

$msg = 'This is the message to authenticate!';
$key = random_bytes(SODIUM_CRYPTO_SECRETBOX_KEYBYTES); // 256 bit

// Generate the Message Authentication Code
$mac = sodium_crypto_auth($msg, $key);

// Altering $mac or $msg, verification will fail
echo sodium_crypto_auth_verify($mac, $msg, $key) ? 'Success' : 'Error';

Example 3:

sending secret messages

Public-key encryption

$aliceKeypair = sodium_crypto_box_keypair();
$alicePublicKey = sodium_crypto_box_publickey($aliceKeypair);
$aliceSecretKey = sodium_crypto_box_secretkey($aliceKeypair);

$bobKeypair = sodium_crypto_box_keypair();
$bobPublicKey = sodium_crypto_box_publickey($bobKeypair); // 32 bytes
$bobSecretKey = sodium_crypto_box_secretkey($bobKeypair); // 32 bytes

$msg = 'Hi Bob, this is Alice!';
$nonce = random_bytes(SODIUM_CRYPTO_BOX_NONCEBYTES); // 24 bytes

$keyEncrypt = $aliceSecretKey . $bobPublicKey;
$ciphertext = sodium_crypto_box($msg, $nonce, $keyEncrypt);

$keyDecrypt = $bobSecretKey . $alicePublicKey;
$plaintext = sodium_crypto_box_open($ciphertext, $nonce, $keyDecrypt);
echo $plaintext === $msg ? 'Success' : 'Error';

Example 4:

Digital signature

Digital signature

$keypair = sodium_crypto_sign_keypair();
$publicKey = sodium_crypto_sign_publickey($keypair); // 32 bytes
$secretKey = sodium_crypto_sign_secretkey($keypair); // 64 bytes

$msg = 'This message is from Alice';
// Sign a message
$signedMsg = sodium_crypto_sign($msg, $secretKey);
// Or generate only the signature (detached mode)
$signature = sodium_crypto_sign_detached($msg, $secretKey); // 64 bytes

// Verify the signed message
$original = sodium_crypto_sign_open($signedMsg, $publicKey);
echo $original === $msg ? 'Signed msg ok' : 'Error signed msg';
// Verify the signature
echo sodium_crypto_sign_verify_detached($signature, $msg, $publicKey) ?
     'Signature ok' : 'Error signature';

Example 5:

AES-GCM

AEAD AES-256-GCM

if (! sodium_crypto_aead_aes256gcm_is_available()) {
    throw new \Exception("AES-GCM is not supported on this platform");
}
$msg = 'Super secret message!';
$key = random_bytes(SODIUM_CRYPTO_AEAD_AES256GCM_KEYBYTES);
$nonce = random_bytes(SODIUM_CRYPTO_AEAD_AES256GCM_NPUBBYTES);

// AEAD encryption
$ad = 'Additional public data';
$ciphertext = sodium_crypto_aead_aes256gcm_encrypt(
    $msg,
    $ad,
    $nonce,
    $key
);
// AEAD decryption
$decrypted = sodium_crypto_aead_aes256gcm_decrypt(
    $ciphertext,
    $ad,
    $nonce,
    $key
);
if ($decrypted === false) {
    throw new \Exception("Decryption failed");
}
echo $decrypted === $msg ? 'OK' : 'Error';

Note: you need to store also ad and nonce + ciphertext

Example 6:

store passwords safely

Argon2i

$password = 'password';

$hash = sodium_crypto_pwhash_str(
    $password,
    SODIUM_CRYPTO_PWHASH_OPSLIMIT_INTERACTIVE,
    SODIUM_CRYPTO_PWHASH_MEMLIMIT_INTERACTIVE
); // 97 bytes

echo sodium_crypto_pwhash_str_verify($hash, $password) ?
     'OK' : 'Error';

An example of Argon2i hash:

$argon2id$v=19$m=65536,t=2,p=1$EF1BpShRmCYHN7ryxlhtBg$zLZO4IWjx3E...

Argon2 in PHP 7.2

$password = 'password';

// Argon2i without Sodium
$hash = password_hash($password, PASSWORD_ARGON2I); // 95 bytes

echo password_verify($password, $hash) ? 'OK' : 'Error';

Comparing with Sodium:

$argon2id$v=19$m=65536,t=2,p=1$EF1BpShRmCYH... // 97 bytes, Sodium
$argon2i$v=19$m=1024,t=2,p=2$Y3pweEtMdS82SG... // 95 bytes, PHP

Note: password_hash() is not compatible with sodium_crypto_pwhash_str()

Example 7:

Derive a key from a user's password

Password are bad

• Not random
• Predictable (most of the time)
• Only a subset of ASCII codes (typically $68$ vs $256$)
• Never use it as encryption/authentication key!
• Use KDF to derive a key from a password

Derive a key using Argon2i

Example: generating a binary key of 32 bytes

$password = 'password';
$salt = random_bytes(SODIUM_CRYPTO_PWHASH_SALTBYTES);

$key = sodium_crypto_pwhash(
    32,
    $password,
    $salt,
    SODIUM_CRYPTO_PWHASH_OPSLIMIT_INTERACTIVE,
    SODIUM_CRYPTO_PWHASH_MEMLIMIT_INTERACTIVE
);

Note: you need to store also the salt to generate the same key from password

Utility in Sodium

• Wiping Sensitive Data from Memory:

  sodium_memzero(&$secret)

• Hex2bin / Bin2Hex:


  sodium_hex2bin(string $hex, string $ignore = '')
  sodium_bin2hex(string $bin)


• Constant-time string comparison:

  sodium_compare(string $str1, string $str2)

References
