8 is coming:
the new PHP

by Enrico Zimuel
Principal Software Engineer @ Elastic

PUG Torino, Mar. 31, 2020

About me

Developer since 1996 Principal Engineer at Elastic Open source contributor TEDx and international speaker Teaching at ITS ICT Piemonte Author of Sviluppare in PHP 7 Co-founder of PUG Torino

• Part of GrUSP association
• Founded in 2011
• 440+ members on meetup.com
• Meetup every month (or two)
• Sponsor: Toolbox Coworking Torino

PHP 8

New features* (some)

• JIT compiler (RFC)
• Union types (RFC)
• Static return type (RFC)
• Weak maps (RFC)
• ::class on objects (RFC)
• Stringable interface (RFC)

* accepted

JIT

What's JIT?

A Just-In-Time (JIT) compiler is a feature of the run-time interpreter, that instead of interpreting bytecode every time a method is invoked, will compile the bytecode into machine code, and then invoke this object code instead

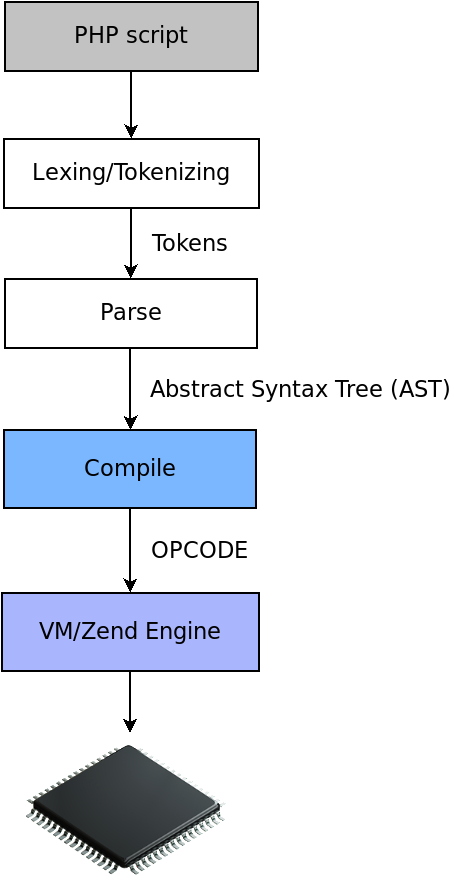

PHP execution

Example

for ($i=0; $i<100; $i++) {
    echo $i;
}

Opcode:

L0 (2):     ASSIGN CV0($i) int(0)
L1 (2):     JMP L4
L2 (3):     ECHO CV0($i)
L3 (2):     PRE_INC CV0($i)
L4 (2):     T1 = IS_SMALLER CV0($i) int(100)
L5 (2):     JMPNZ T1 L2
L6 (5):     RETURN int(1)

php -d opcache.opt_debug_level=0x20000 -d opcache.enable_cli=1 test.php

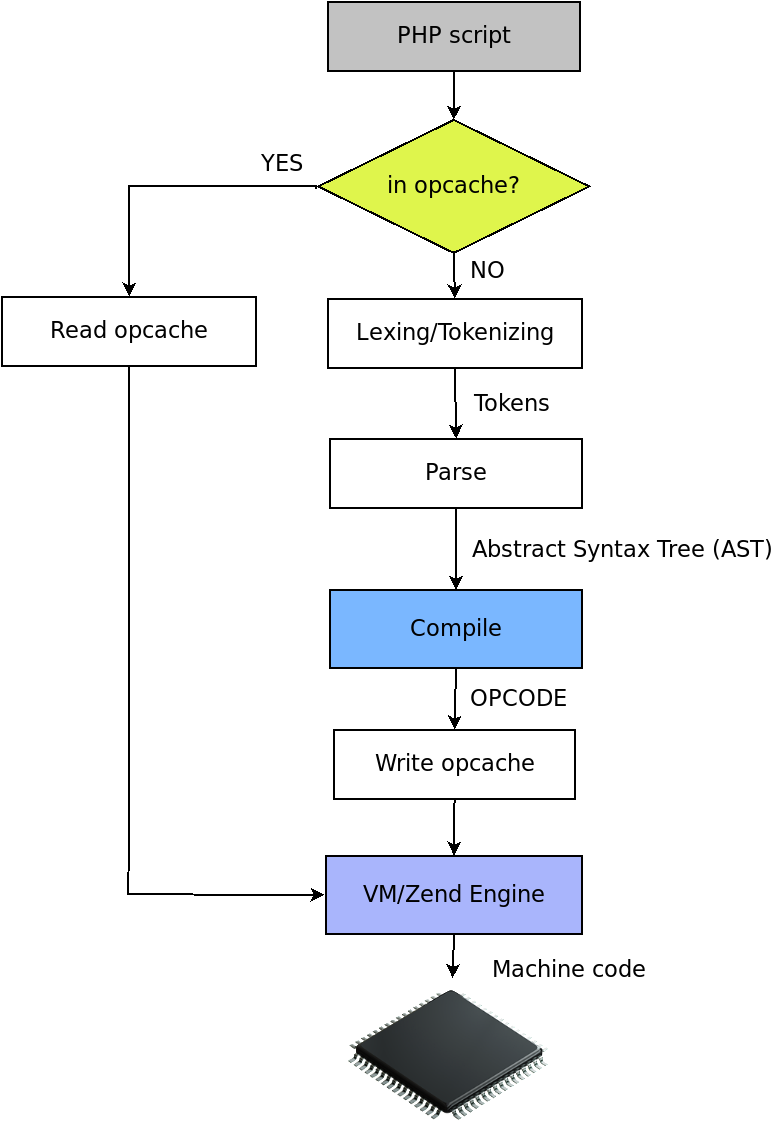

Opcache

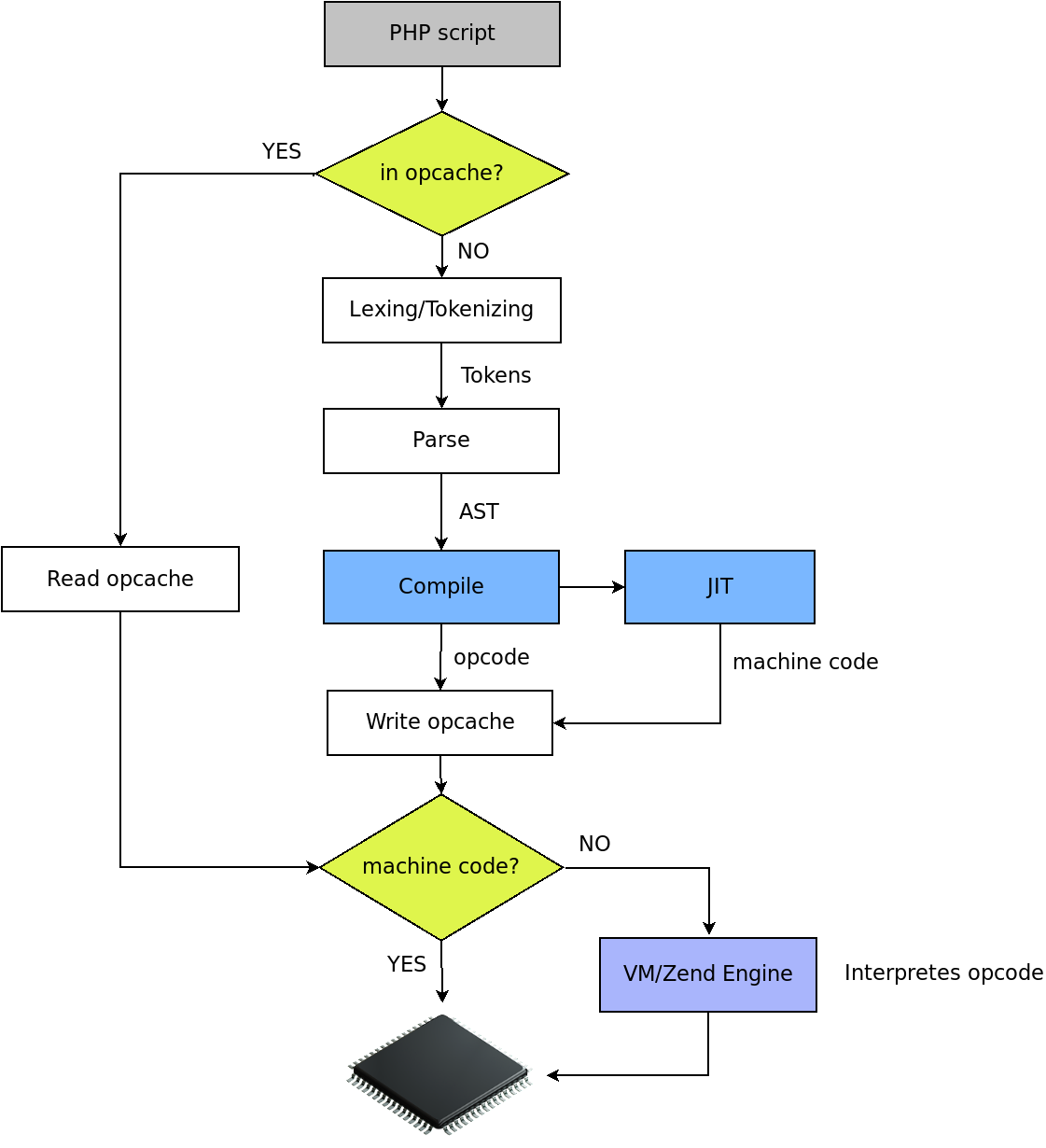

JIT

JIT machine code

	sub $0x10, %rsp
	lea 0x50(%r14), %rdi
	cmp $0xa, 0x8(%rdi)
	jnz .L1
	mov (%rdi), %rdi
	cmp $0x0, 0x18(%rdi)
	jnz .L6
	add $0x8, %rdi
.L1:
	test $0x1, 0x9(%rdi)
	jnz .L7
	mov $0x0, (%rdi)
	mov $0x4, 0x8(%rdi)
.L2:
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler
	jmp .L4
.L3:
	mov $0x7fcc67e2e630, %r15
	mov $0x561f82773690, %rax
	call *%rax
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler
	cmp $0x4, 0x58(%r14)
	jnz .L9
	add $0x1, 0x50(%r14)
.L4:
	mov $EG(vm_interrupt), %rax
	cmp $0x0, (%rax)
	jnz .L11
	cmp $0x4, 0x58(%r14)
	jnz .L12
	cmp $0x64, 0x50(%r14)
	jl .L3
.L5:
	mov $0x7fcc67e2e6b0, %r15
	add $0x10, %rsp
	mov $ZEND_RETURN_SPEC_CONST_LABEL, %rax
	jmp *%rax
	sub $0x10, %rsp
	jmp .L4
.L6:
	mov $0x7fcc67e2e5c0, %rsi
	mov %r15, (%r14)
	mov $zend_jit_assign_const_to_typed_ref, %rax
	call *%rax
	jmp .L2
.L7:
	mov (%rdi), %rax
	mov %rax, (%rsp)
	mov $0x0, (%rdi)
	mov $0x4, 0x8(%rdi)
	mov (%rsp), %rdi
	sub $0x1, (%rdi)
	jnz .L8
	mov %r15, (%r14)
	mov $rc_dtor_func, %rax
	call *%rax
	jmp .L2
.L8:
	mov 0x4(%rdi), %eax
	and $0xfffffc10, %eax
	cmp $0x10, %eax
	jnz .L2
	mov $gc_possible_root, %rax
	call *%rax
	jmp .L2
.L9:
	mov %r15, (%r14)
	lea 0x50(%r14), %rdi
	cmp $0xa, 0x8(%rdi)
	jnz .L10
	mov (%rdi), %rsi
	cmp $0x0, 0x18(%rsi)
	lea 0x8(%rsi), %rdi
	jz .L10
	mov $0x0, %rdx
	mov $zend_jit_pre_inc_typed_ref, %rax
	call *%rax
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler
	jmp .L4
.L10:
	mov $increment_function, %rax
	call *%rax
	jmp .L4
.L11:
	mov $0x7fcc67e2e670, %r15
	jmp JIT$$interrupt_handler
.L12:
	cmp $0x5, 0x58(%r14)
	jnz .L13
	mov $0x64, %rax
	vcvtsi2sd %rax, %xmm0, %xmm0
	vucomisd 0x50(%r14), %xmm0
	ja .L3
	jmp .L5
.L13:
	mov $0x7fcc67e2e670, %rax
	mov %rax, (%r14)
	lea 0x50(%r14), %rsi
	mov $0x7fcc67e2e5d0, %rdx
	lea 0x60(%r14), %rdi
	mov $compare_function, %rax
	call *%rax
	mov $EG(exception), %rax
	cmp $0x0, (%rax)
	jnz JIT$$exception_handler_undef
	cmp $0x0, 0x60(%r14)
	jl .L3
	jmp .L5

php -d opcache.enable_cli=1 -d opcache.jit=1235
-d opcache.jit_buffer_size=64M -d opcache.jit_debug=1 test.php

JIT in PHP 8

• JIT is an extension of Opcode Cache
• How does JIT choose to generate machine code?
• How can JIT generate machine code for all the CPUs?

How does JIT choose to generate machine code?

JIT configuration (CRTO)

• opcache.jit consists of 4 decimal digits, e.g 1235
• 1 = use AVX instructions (CPU optimization)
• 2 = Register allocation
• 3 = profile on the fly and compile hot functions (Trigger)
• 5 = type inference & procedure analysis (Optimization level)

CPU Optimization

• 0 = none
• 1 = enable AVX instruction generation

Register allocation

• 0 = don't perform register allocation
• 1 = use local liner-scan register allocator
• 2 = use global liner-scan register allocator

JIT Trigger

• 0 = JIT all functions on first script load
• 1 = JIT functions on first execution
• 2 = Profile on first request and compile hot functions on second request
• 3 = Profile on the fly and compile hot functions
• 4 = Compile functions with @jit tag in doc-comments

Optimization level

• 0 = don't JIT
• 1 = minimal JIT (call standard VM handlers)
• 2 = selective VM handler inlining
• 3 = optimized JIT based on static type inference of individual function
• 4 = optimized JIT based on static type inference and call tree
• 5 = optimized JIT based on static type inference and inner procedure analyses

How can JIT generate machine code?

DynASM

• PHP 8 JIT uses DynASM to generate machine code
• Dynamic Assembler for code generation engines
• Developed as tool of LuaJIT
• CPU support: x86, x64, ARM, PowerPC and MIPS

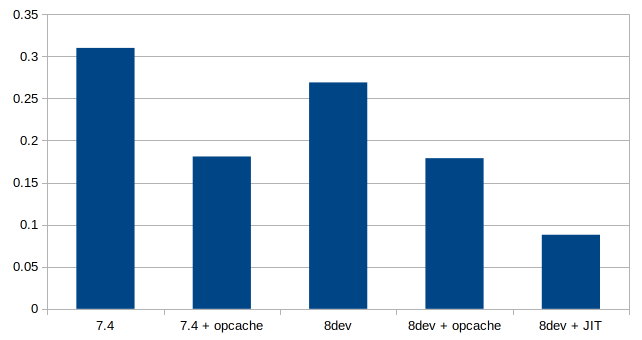

JIT benchmark

Execution time (sec) of Zend/bench.php, using PHP 7.4.4 (Zend Engine 3.4.0)
and PHP 8.0.0-dev (Zend Engine 4.0.0-dev)

JIT on WordPress

• PHP 8 no JIT: 190 req/sec
• PHP 8 + JIT (CTRO 1235): 160 req/sec
• PHP 8 + JIT (CTRO 1225): 189 req/sec

Source: PHP 8 et Just In Time Compilation

IO Bound vs. CPU Bound

• JIT is useful for CPU intensive application (machine learning, image manipulation, etc).
• JIT does not offer improvement for IO Bound application

Union types

Union types (RFC)

class Number {
    private int|float $number;

    public function setNumber(int|float $number): void {
        $this->number = $number;
    }

    public function getNumber(): int|float {
        return $this->number;
    }
}

Static return type

Static return type (RFC)

class Foo {
    public function __construct($params = [])
    {
        $this->params = $params;
    }

    public function createFromWhatever($whatever): static {
        return new static($whatever);
    }
}

$foo = new Foo();
var_dump($foo); // object(Foo)#1 { ["params"]=> [] }

$bar = $foo->createFromWhatever(['x' => 'y']);
var_dump($bar);	// object(Foo)#2 { ["params"]=> ["x" => "y"]}

Fluent interfaces

class Test {
    public function doWhatever(): static {
        // Do whatever.
        return $this;
    }
}

Weak maps

Weak maps (RFC)

To provide "weakly referenced" map objects

$map = new WeakMap;
$obj = new stdClass;
$map[$obj] = 42;
var_dump($map);
// object(WeakMap)#1 (1) {
//   [0]=> [
//     "key" => object(stdClass)#2,
//     "value" => int(42)
//   ]
// }

// The object is destroyed here, key automatically removed
unset($obj);
var_dump($map);
// object(WeakMap)#1 (0) { }

Weakmap class

final class WeakMap implements ArrayAccess, Countable, Traversable {
    public function offsetGet($object);
    public function offsetSet($object, $value): void;
    public function offsetExists($object): bool;
    public function offsetUnset($object): void;
    public function count(): int;
}

Example: caching objects

class Foo {
    private WeakMap $cache;

    public function getSomethingWithCaching(object $obj) {
        return $this->cache[$obj] ??= $this->somethingExpensive($obj);
    }

    // ...
}

??= Null Coalescing Assignment (PHP 7.4+)

::class on objects

::class on objects (RFC)

$object = new stdClass;
var_dump($object::class); // "stdClass"

$object = null;
var_dump($object::class); // TypeError

Stringable interface

Stringable interface (RFC)


interface Stringable
{
    public function __toString(): string;
}

Stringable interface is automatically added to classes that implement the __toString() method

PHP 8

BC breaks

BC breaks

• Reclassified engine warnings (RFC)
• E_ALL as default (now is everything but E_NOTICE and E_DEPRECATED)
• The @ operator no longer silences fatal errors
• Concatenation precedence (RFC)
• Others...

PHP 8 Release date

PHP 8 should be released on December 2020
(maybe Q1 2021)

References
